TDA3505 Elektronikai alkatrészek-IC

Cikkszám: 705

Processor, RGB 28p.

1 db raktáron db raktáron

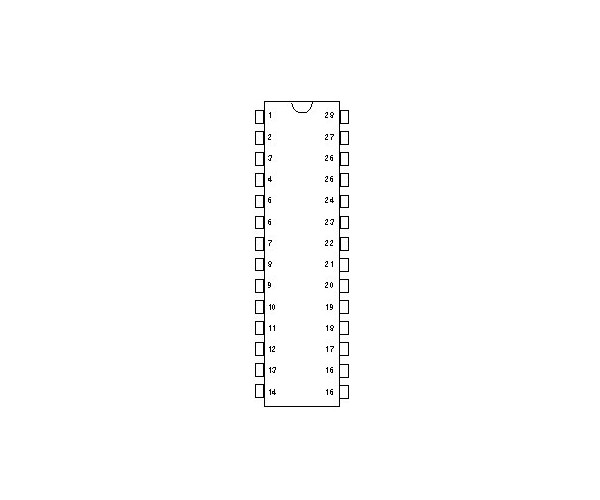

Pin-No.1	red signal output
Pin-No.2	GREEN storage capacitor for cut-off control
Pin-No.3	green signal output
Pin-No.4	BLUE storage capacitor for cut-off control
Pin-No.5	blue signal output
Pin-No.6	positive supply voltage (+12V)
Pin-No.7	BLUE storage capacitor for brightness
Pin-No.8	GREEN storage capacitor for brightness
Pin-No.9	RED storage capacitor for brightness
Pin-No.10	sandcastle input
Pin-No.11	fast switch RGB input
Pin-No.12	blue signal input
Pin-No.13	green signal input
Pin-No.14	red signal input
Pin-No.15	luminance input
Pin-No.16	saturation control input
Pin-No.17	R-Y colour difference input
Pin-No.18	B-Y colour difference input
Pin-No.19	contrast control
Pin-No.20	brightness control
Pin-No.21	white point adjustment, blue
Pin-No.22	white point adjustment, green
Pin-No.23	white point adjustment, red
Pin-No.24	ground
Pin-No.25	peak beam current limiting
Pin-No.26	automatic cut-off control input
Pin-No.27	leakage current filter
Pin-No.28	RED storage capacitor for cut-off control
