TDA3590 Elektronikai alkatrészek-IC

Cikkszám: 708

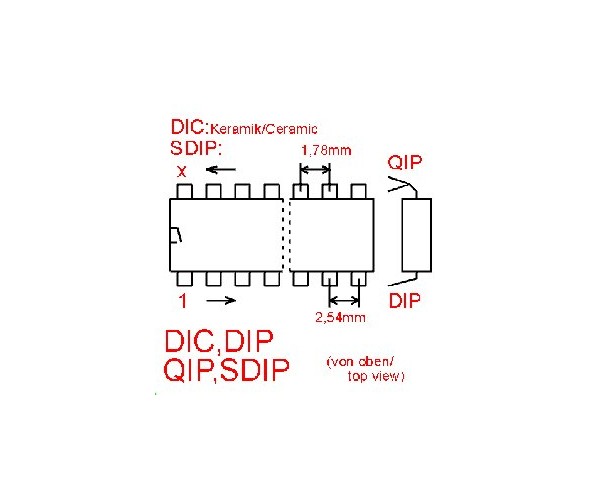

Converter, SECAM in PAL 24 p.

1 db raktáron db raktáron

Pin-No.1	identification coupling input
Pin-No.2	ground
Pin-No.3	amplifier & limiter
Pin-No.4	amplifier & limiter input
Pin-No.5	black level & hor./vert. identification selector
Pin-No.6	identification detector input (SECAM/NOT-SECAM)
Pin-No.7	divider input
Pin-No.8	chrominance output signal
Pin-No.9	phase identification input
Pin-No.10	phase identification input
Pin-No.11	ChrInDirect
Pin-No.12	chrominance input, delayed
Pin-No.13	(R-Y) output
Pin-No.14	(B-Y) output
Pin-No.15	luminance signal output
Pin-No.16	delay line input
Pin-No.17	supply voltage
Pin-No.18	supply voltage
Pin-No.19	sandcastle pulse input
Pin-No.20	de-emphasis
Pin-No.21	(B-Y) clamp
Pin-No.22	(R-Y) clamp
Pin-No.23	chrominance demodulator input
Pin-No.24	chrominance demodulator input
