TDA8215B Elektronikai alkatrészek-IC

Cikkszám: 756

Processor, Deflection 20 p.

1 db raktáron db raktáron

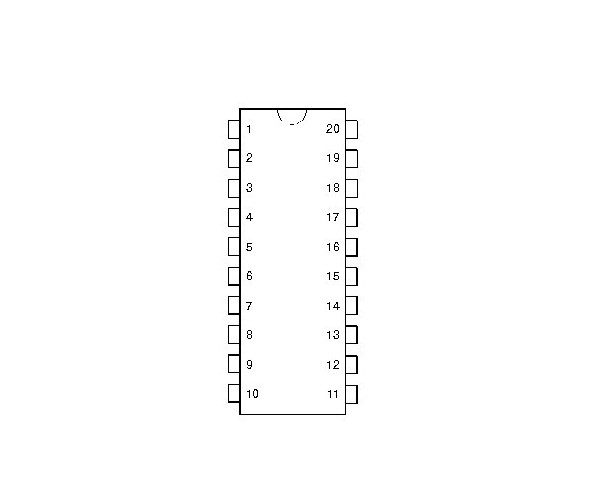

Pin-No.1	supply voltage 1
Pin-No.2	frame oscillator
Pin-No.3	supply voltage 2
Pin-No.4	flyback generator (frame)
Pin-No.5	ground
Pin-No.6	ground
Pin-No.7	power amplifier input
Pin-No.8	video indentification output
Pin-No.9	frame power supply
Pin-No.10	frame output
Pin-No.11	line oscillator
Pin-No.12	phase detector output
Pin-No.13	sawtooth input
Pin-No.14	RC network
Pin-No.15	ground
Pin-No.16	ground
Pin-No.17	output to the line (line output)
Pin-No.18	flyback input (line, horizontal)
Pin-No.19	super sandcastle output
Pin-No.20	video input
